NJ234em
SDLLZC
8482500090
High Quality Nu Nf Nup Nj 234m Bearings 42234EH 170*310*52 mm Cylindrical Roller Bearing Nj234em For Machinery
Shandong Liulian Bearing Company is a manufacturer deep groove ball bearing,cylindrical roller bearing,spherical roller bearing and linear guides.
Good quality and Short delivery time,many sizes are available in stock,welcome.
Email: admin@sdllbearing.com / liyun@sdllbearing.com
Wechat/WhatsApp: +86 18953905063
Type Cage | Brass(M/EM) | Steel/Iron | Nylon |
N | The inner ring has two integral flanges and the outer ring is without flanges. Axial displacement of the shaft with respect to the housing can be accommodated in both directions within the bearing itself. The bearings are therefore used as non-locating bearings. | ||
Example:N1010,N210,N310,N410,N2210,N2310 | |||
NJ | The outer ring has two integral flanges and the inner ring one integral flange. The bearings are therefore suitable for the axial location of a shaft in one direction. | ||
Example:NJ1010,NJ210,NJ310,NJ410,NJ2210,NJ2310 | |||
NU | The outer ring of bearings of the NU design has two integral flanges and the inner ring is without flanges. Axial displacement of the shaft with respect to the housing can be accommodated in both directions within the bearing itself. | ||
Example:NU1010,NU210,NU310,NU410,NU2210,NU2310 | |||
NUP | The outer ring has two integral flanges and the inner ring one integral flange and one non-integral flange in the form of a loose flange ring. The bearings can be used as locating bearings, i.e. they can provide axial location for a shaft in both directions. | ||
Example:NUP1010,NUP210,NUP310,NUP410,NUP2210,NUP2310 | |||
NF | The outer ring has one integral flange and the inner ring two integral flanges. | ||
Example:NF1010,NF210,NF310,NF410,NF2210,NF2310 | |||

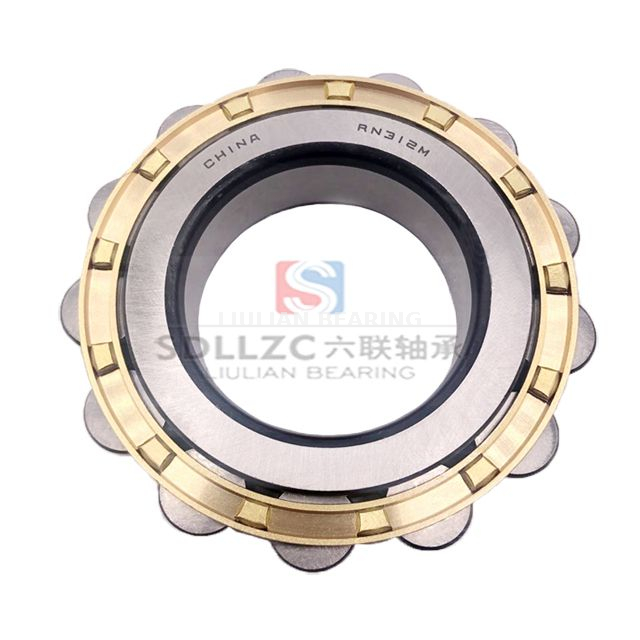

RN | No outer ring and the inner ring two integral flanges. | ||
Example:RN1010,RN210,RN310,RN410,RN2210,RN2310 |
High Quality Nu Nf Nup Nj 234m Bearings 42234EH 170*310*52 mm Cylindrical Roller Bearing Nj234em For Machinery
NJ234EM Single row cylindrical roller bearings dimensions
Single row cylindrical roller bearings
Prodcuts | High Quality Nu Nf Nup Nj 234m Bearings 42234EH 170*310*52 mm Cylindrical Roller Bearing Nj234em For Machinery |
Brand name | SDLLZC / OEM Brands |
ID size | Standard and non-standard sizes available |
Material | Chrome Steel |
Delivery date | Small order 2-15days,large order 30days |
Payment terms | A: 30% T/T in advance .70% before shipment |
B.30% T/T in advance .70% against copy of B/L at sight | |
About us | SDLLZC is the domestic professional bearing production enterprises, and have all sizes of the bearing from 25mm to 750mm. |
