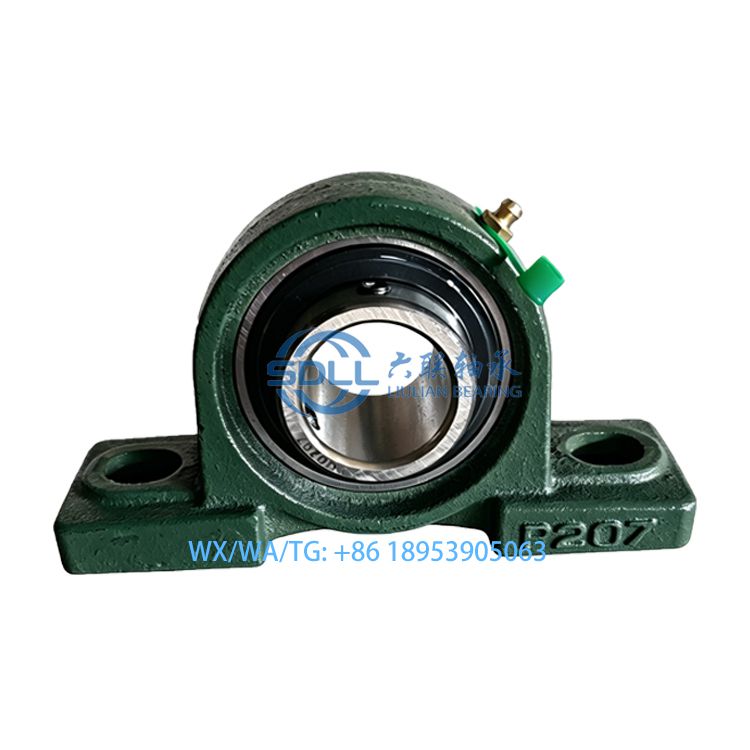

Pillow Block Bearings UCP204 205 206 207 208 209 Agricultural Bearings

Quantity:
Item:	UCP204 UCP205 UCP206 UCP207 UCP208 UCP209
Availability:





Inquire Add to Basket

Model:
UCP205
Brand:
SDLL

Product Description

Shandong Liulian Bearing Company is a manufacturer deep groove ball bearing，cylindrical roller bearing,spherical roller bearing and taper roller bearing.

Good quality and Short delivery time,many sizes are available in stock,welcome.

Email: gina@sdllbearing.com

Wechat/WhatsApp/Telegram: +86 15366619877

Pillow Block Bearings UCP204 205 206 207 208 209 Agricultural Bearings

SDLL Advantage	1.Excellent and high quality control,high speed,low noise,long life
	2.Prompt delivery
	3.Competitive price
	4.Small order accepted
	5.Customers' drawing or samples accepted
	6.OEM service
	7.Professional:many years manufacture bearing

UCT vs Other UC Series – Quick Comparison

Feature	UCP	UCF	UCFL	UCT
Housing Type	Pillow block (2-bolt)	Square flange (4-bolt)	Oval flange (2-bolt)	Take-up unit
Mounting	Horizontal base	Vertical / Wall	Vertical (compact)	Sliding in take-up frame
Main Function	Fixed support	Fixed support	Fixed support	Adjustable position / tensioning
Typical Use	Floor-mounted shafts	Wall-mounted shafts	Space-limited mounting	Conveyor belt tensioning

UCP Series Bearings – Features and Applications

The UCP series is one of the most widely used types of mounted ball bearing units (also known as pillow block bearings).

UCP stands for:

UC = Insert ball bearing with set-screw locking (wide inner ring + spherical outer diameter)

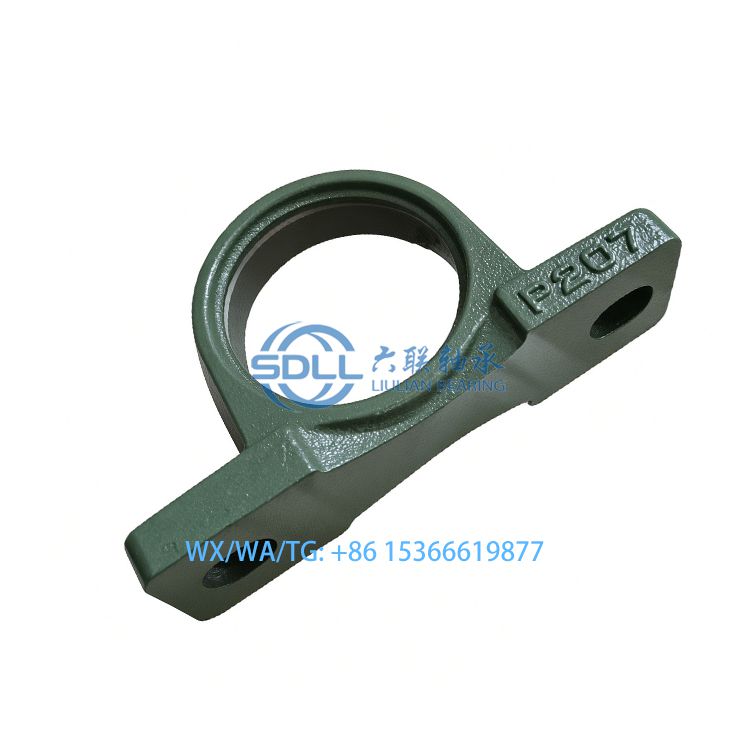

P = Pillow block housing (cast iron housing with a flat base and two mounting bolt holes)

Available in Two Main Load Series

UCP200 series: Compact design for light-to-medium loads and higher speeds.
UCP300 series: Larger size for higher radial load capacity.

Typical Applications

UCP pillow block bearings are ideal for supporting horizontal shafts under primarily radial loads. Common equipment and industries include:

Conveyor systems (belt conveyors, roller conveyors, packaging lines)
Agricultural machinery (harvesters, grain augers, feed conveyors, threshers)
Fans and blowers (HVAC systems, industrial ventilation)
Pumps and motors
Textile machinery
Food processing and packaging equipment
Material handling equipment
Light-to-medium duty industrial machinery in general

UCP图纸

Inquiry	Type	Dimensions（mm）

Inquiry	Type	d	H	L	J	A	N	N1	H1	W	L1	B	S
	UCP203	17	30.2	127	96	38	12	16	14	62	42	27.4	11.5
	UCP204	20	33.3	127	96	38	12	16	14	65	42	31	12.7
	UCP205	25	36.5	140	105	38	12	19	16	71	42	34.1	14.3
	UCP206	30	42.9	165	121	48	14	21	18	84	54	38.1	15.9
	UCP207	35	47.6	167	126	48	14	21	19	93	54	42.9	1.5

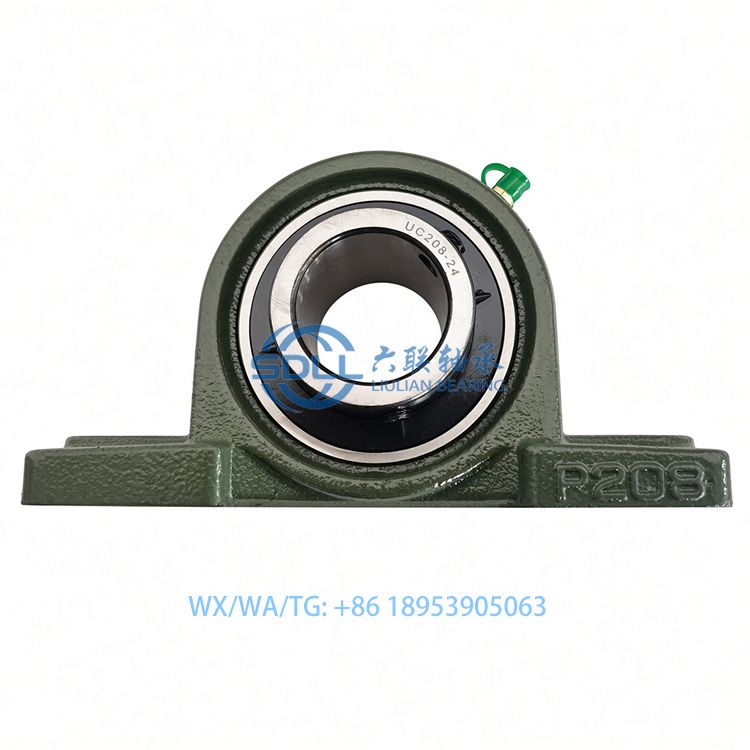

	UCP208	40	49.2	184	136	54	14	21	19	98	54	49.2	19
	UCP209	45	54	190	146	54	14	21	20	106	60	49.2	19
	UCP210	50	57.2	206	159	60	18	23	22	114	65	51.6	19
	UCP211	55	63.5	219	172	60	18	23	22	125	65	55.6	22.2
	UCP212	60	69.9	241	186	70	18	23	25	138	70	65.1	25.4
	UCP213	65	76.2	265	203	70	23	28	27	150	77	65.1	25.4
	UCP214	70	79.4	266	210	72	23	28	27	157	77	74.6	30.2
	UCP215	75	82.6	274	217	74	23	28	28	162	80	77.8	33.3
	UCP216	80	88.9	292	232	78	23	28	30	174	85	82.6	33.3
	UCP217	85	95.2	310	247	83	23	28	32	187	85	85.7	34.1
	UCP218	90	101.6	327	262	88	27	34	33	200	90	96	39.7
	UCP305	25	45	175	132	45	17	20	15	85	54	38	15
	UCP306	30	50	180	140	50	17	20	18	95	54	43	17
	UCP307	35	55	210	160	56	17	25	20	106	60	48	19
	UCP308	40	60	220	170	60	17	27	22	116	60	52	19
	UCP309	45	67	245	190	67	20	30	24	129	65	57	22
	UCP310	50	75	275	212	75	20	35	27	143	75	61	22
	UCP311	55	80	310	236	80	20	38	30	154	85	66	25
	UCP312	60	85	330	250	85	25	38	32	165	95	71	26
	UCP313	65	90	340	260	90	25	38	33	176	105	75	30
	UCP314	70	95	360	280	90	27	40	35	187	105	78	33
	UCP315	75	100	380	290	100	27	40	35	198	110	82	32
	UCP316	80	106	400	300	110	27	40	40	210	110	86	34
	UCP317	85	112	420	320	110	33	45	40	220	120	96	40

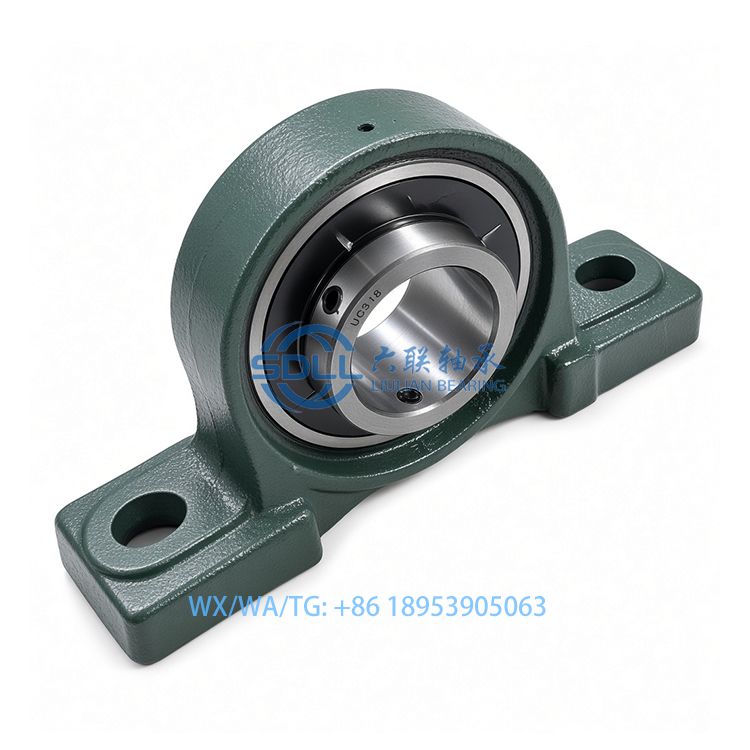

	UCP318	90	118	430	330	110	33	45	45	235	120	96	40

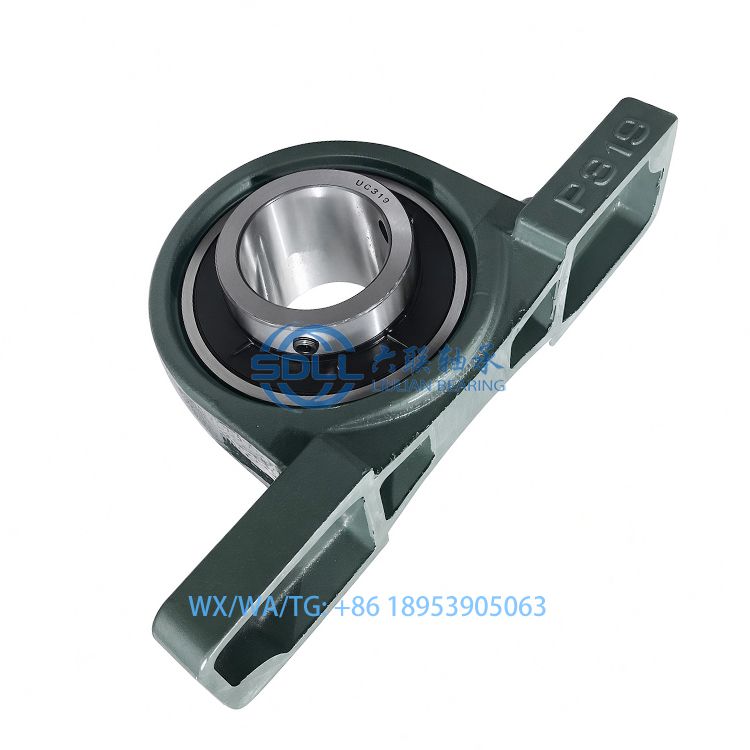

	UCP319	95	125	470	360	120	36	50	45	250	125	103	41
	ucp320	100	140	490	380	120	36	50	50	275	130	108	42
