Pillow Block Bearings UCF204 205 206 207 208 209 Agricultural Bearings

Quantity:
Item:	UCF204 UCF205 UCF206 UCF207 UCF208 UCF209 UCF210
Availability:





Inquire Add to Basket

Model:
UCF205
Brand:
SDLL

Product Description

Shandong Liulian Bearing Company is a manufacturer deep groove ball bearing，cylindrical roller bearing,spherical roller bearing and taper roller bearing.

Good quality and Short delivery time,many sizes are available in stock,welcome.

Email: gina@sdllbearing.com

Wechat/WhatsApp/Telegram: +86 15366619877

Pillow Block Bearings UCF204 205 206 207 208 209 Agricultural Bearings

SDLL Advantage	1.Excellent and high quality control,high speed,low noise,long life
	2.Prompt delivery
	3.Competitive price
	4.Small order accepted
	5.Customers' drawing or samples accepted
	6.OEM service
	7.Professional:many years manufacture bearing

UCFC vs Other Common UC Flange Types

Feature	UCF (Square)	UCFL (Oval)	UCFC (Round Piloted)
Flange Shape	Square	Oval / Rhombic	Circular
Bolt Holes	4	2	4 (equally spaced)
Pilot / Spigot	No	No	Yes (for precise centering)
Mounting Accuracy	Good	Good	Excellent
Space Requirement	Larger	Most compact	Medium
Best For	General wall mounting	Space-limited areas	Precise centering & heavier support

UCF Series Bearings – Features and Applications

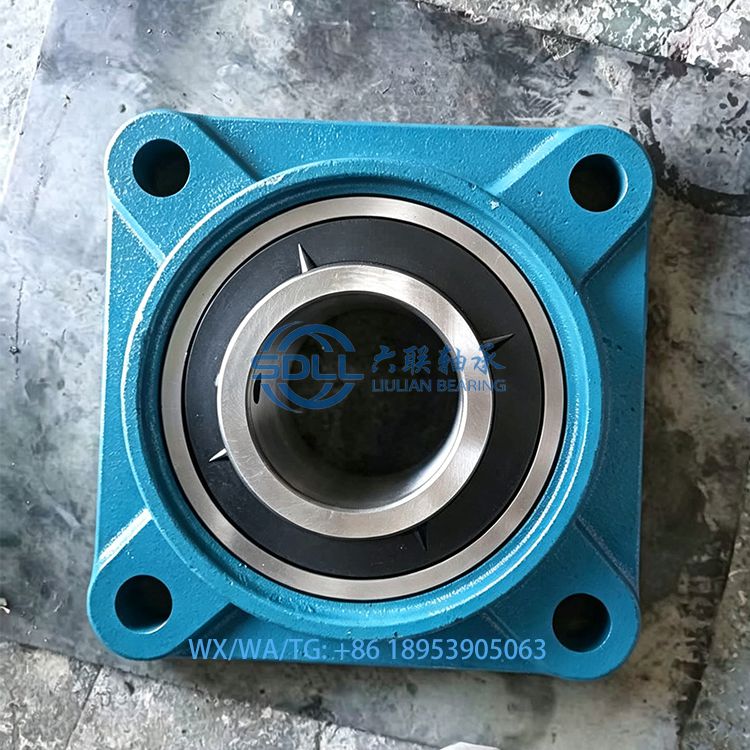

The UCF series is a popular type of mounted ball bearing unit, specifically a square flanged unit.

UCF stands for:

UC = Insert ball bearing with set-screw locking (wide inner ring + spherical outer diameter)

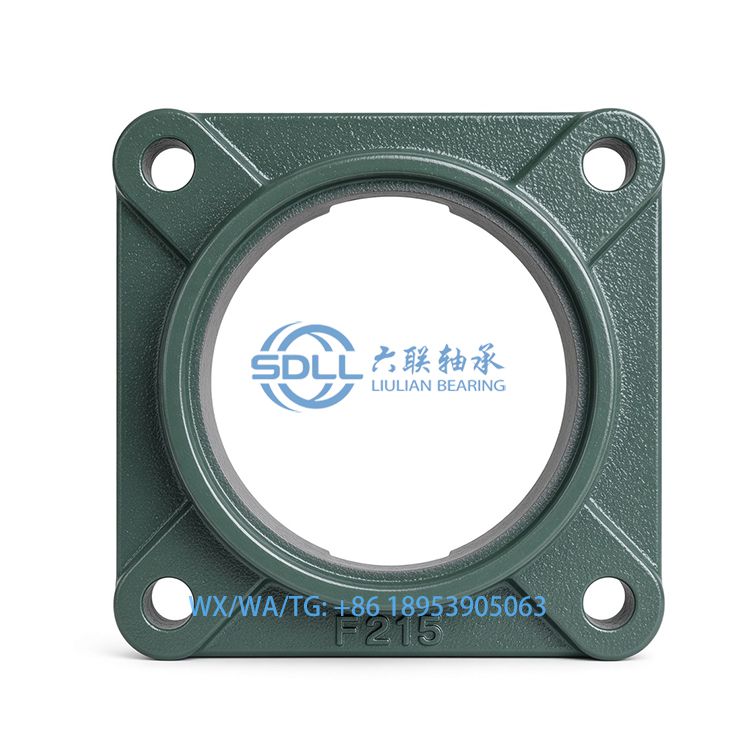

F = Square flange housing (cast iron housing with a square flange and four mounting bolt holes)

Typical Applications

UCF bearings are ideal for supporting shafts that need to be mounted on vertical or side surfaces. Common uses include:

Wall- or panel-mounted shafts in machinery frames
Conveyor systems (side-mounted rollers or drive shafts)
Agricultural equipment
Food processing and packaging machinery
Textile machinery
Fans, blowers, and air-handling units (side-mounted)
Pumps and gearboxes where the shaft exits a vertical surface
Mixers, agitators, and general industrial equipment requiring compact flange mounting

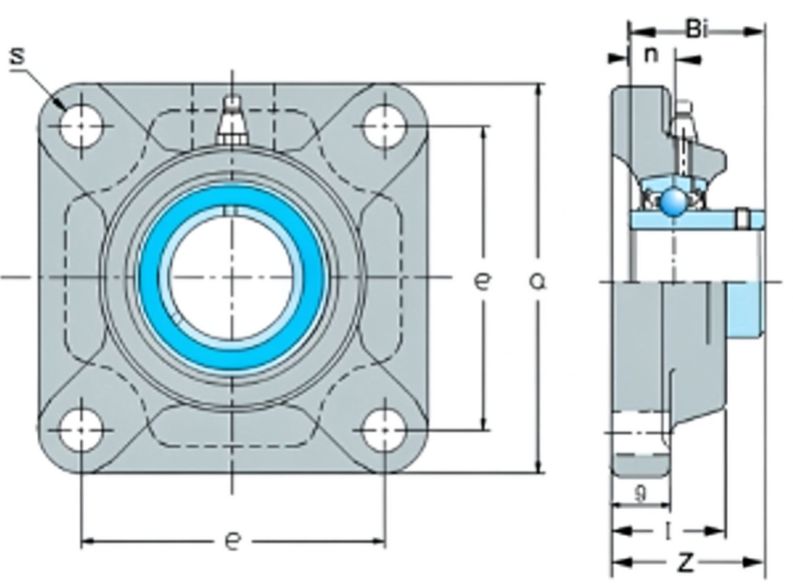

Model	d (mm)	a (mm)	e (mm)	i (mm)	g (mm)	l (mm)	s (mm)	z (mm)	B (mm)	n (mm)	Bolt Size
UCF204	20	86	64	15	12	25.5	12	33.3	31	12.7	M10
UCF205	25	95	70	16	14	27	12	35.8	34.1	14.3	M10
UCF206	30	108	83	18	14	31	12	40.2	38.1	15.9	M10 / M12
UCF207	35	117	92	19	16	34	14	44.4	42.9	17.5	M12 / M14
UCF208	40	130	102	21	16	36	16	51.2	49.2	19	M14
UCF209	45	137	105	22	18	38	16	52.2	49.2	19	M14
UCF210	50	143	111	22	18	40	16	54.6	51.6	19	M14 / M16
UCF211	55	162	130	25	20	43	19	58.4	55.6	22.2	M16
UCF212	60	175	143	29	20	48	19	68.7	65.1	25.4	M16
UCF213	65	187	149	30	22	50	19	69.7	65.1	25.4	M16
UCF214	70	193	152	31	22–24	54	19	75.4	74.6	30.2	M16
UCF215	75	200	159	34	22–24	56	19	78.5	77.8	33.3	M16
UCF216	80	208	165	34	22–24	58	23	83.3	82.6	33.3	M20
UCF217	85	220	175	36	24–26	63	23	87.6	85.7	34.1	M20
UCF218	90	235	187	40	24–26	68	23	96.3	96	39.7	M20
UCF305	25	110	80	16	13	29	16	39	38	15	M14
UCF306	30	125	95	18	15	32	16	44	43	17	M14
UCF307	35	135	100	20	16	36	19	49	48	19	M16
UCF308	40	150	112	23	17	40	19	56	52	19	M16
UCF309	45	160	125	25	18	44	19	60	57	22	M16
UCF310	50	175	132	28	19	48	23	67	61	22	M20
UCF311	55	185	140	30	20	52	23	71	66	25	M20
UCF312	60	195	150	33	22	56	23	78	71	26	M20
UCF313	65	208	166	33	22	58	23	78	75	30	M20
UCF314	70	226	178	36	25	61	25	81	78	33	M22
UCF315	75	236	184	39	25	66	25	89	82	32	M22
UCF316	80	250	196	38	27	68	31	90	86	34	M27
UCF317	85	260	204	44	27	74	31	100	96	40	M27
UCF318	90	280	216	44	30	76	35	100	96	40	M30
UCF319	95	290	228	59	30	94	35	121	103	41	M30
UCF320	100	310	242	59	32	94	38	125	108	42	M33
