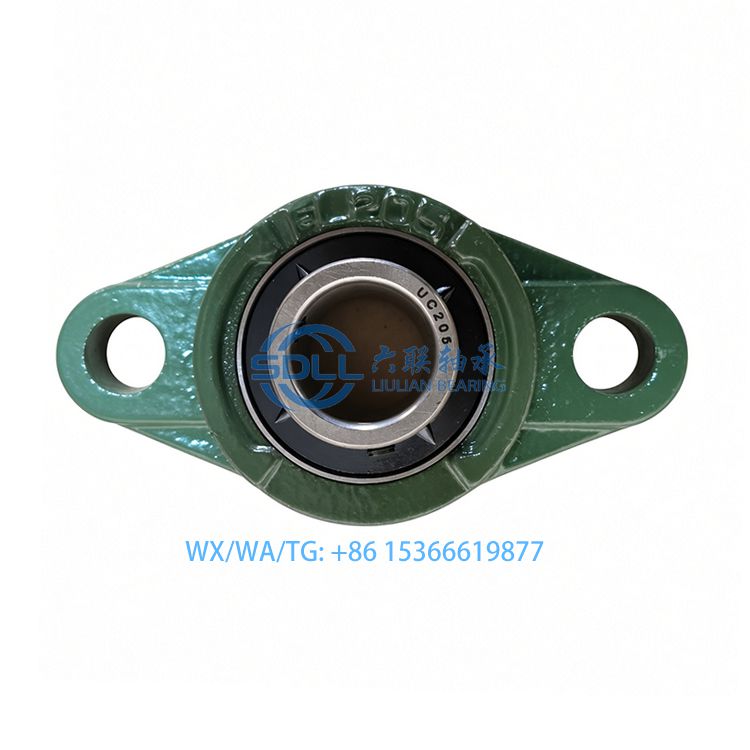

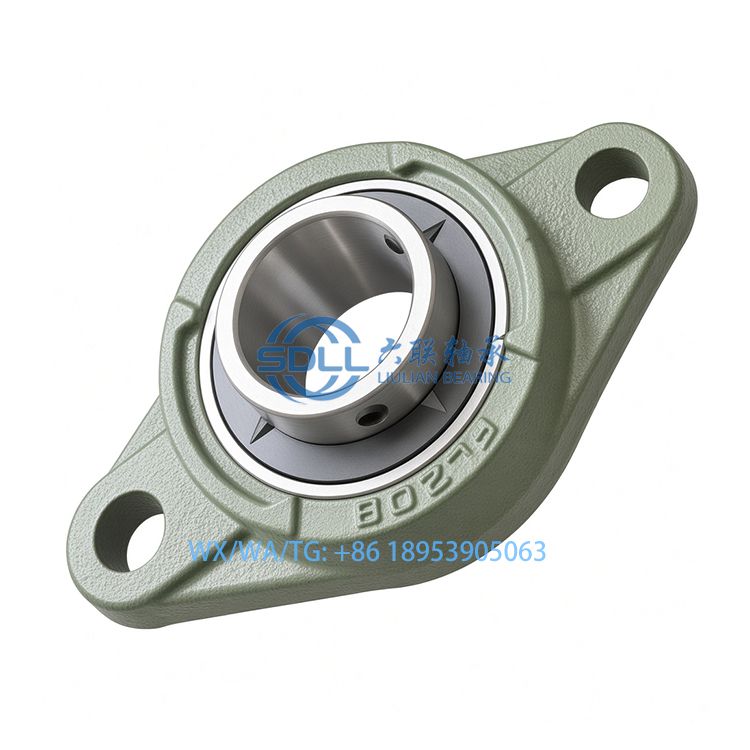

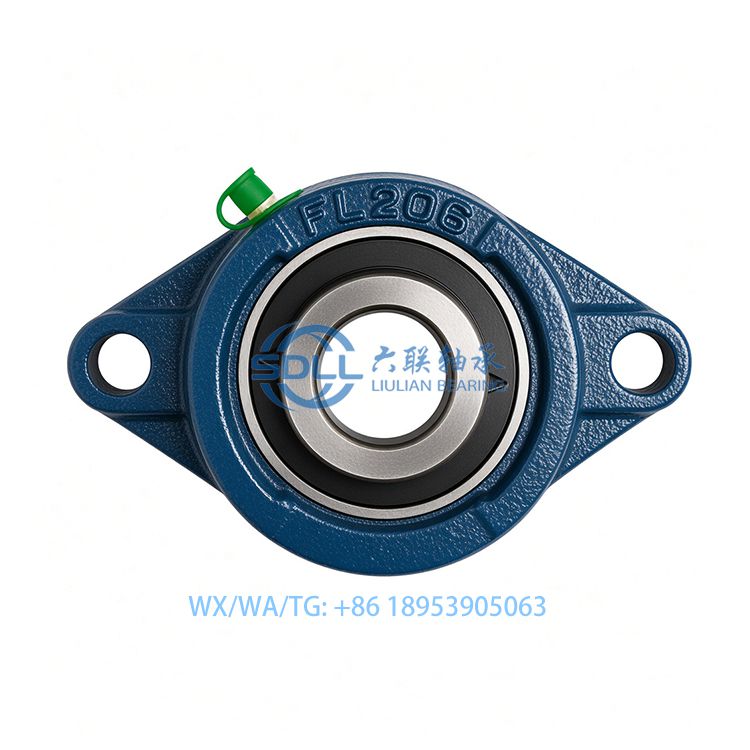

Pillow Block Bearings UCFL204 205 206 207 208 209 Agricultural Bearings

Quantity:
Item:	UCFL204 UCFL205 UCFL206 UCFL207 UCFL208 UCFL209 UCFL210
Availability:





Inquire Add to Basket

Model:
UCFL205
Brand:
SDLL

Product Description

Shandong Liulian Bearing Company is a manufacturer deep groove ball bearing，cylindrical roller bearing,spherical roller bearing and taper roller bearing.

Good quality and Short delivery time,many sizes are available in stock,welcome.

Email: gina@sdllbearing.com

Wechat/WhatsApp/Telegram: +86 15366619877

Pillow Block Bearings UCFL204 205 206 207 208 209 Agricultural Bearings

SDLL Advantage	1.Excellent and high quality control,high speed,low noise,long life
	2.Prompt delivery
	3.Competitive price
	4.Small order accepted
	5.Customers' drawing or samples accepted
	6.OEM service
	7.Professional:many years manufacture bearing

UCFC vs Other Common UC Flange Types

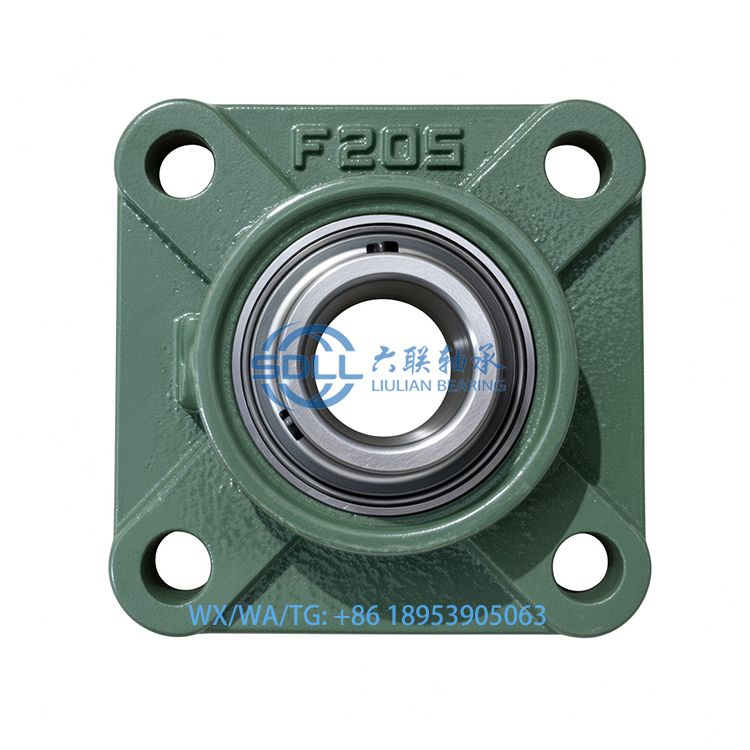

Feature	UCF (Square)	UCFL (Oval)	UCFC (Round Piloted)
Flange Shape	Square	Oval / Rhombic	Circular
Bolt Holes	4	2	4 (equally spaced)
Pilot / Spigot	No	No	Yes (for precise centering)
Mounting Accuracy	Good	Good	Excellent
Space Requirement	Larger	Most compact	Medium
Best For	General wall mounting	Space-limited areas	Precise centering & heavier support

UCFL Series Bearings – Features and Applications

The UCFL series is a compact type of mounted ball bearing unit, specifically an oval (or rhombic) flanged unit.

UCFL stands for:

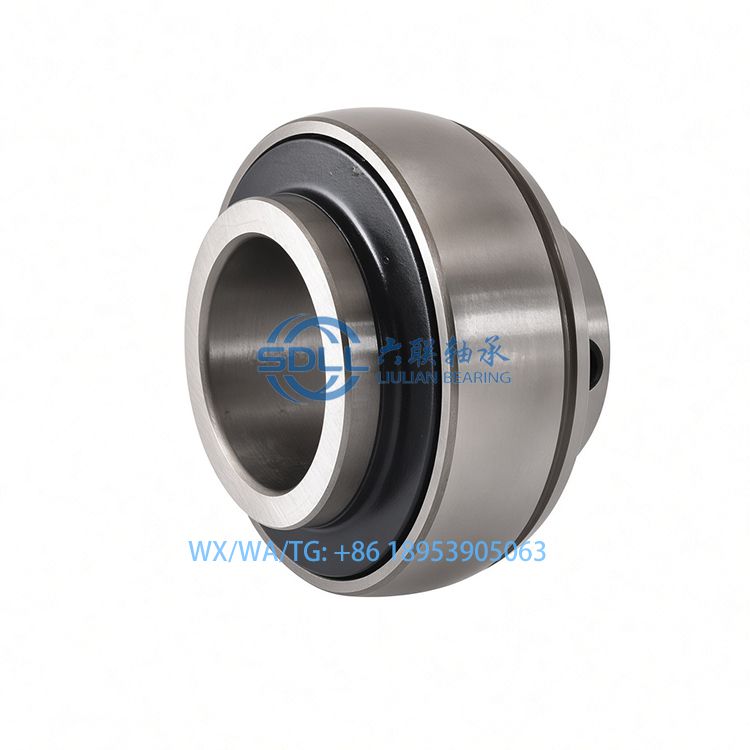

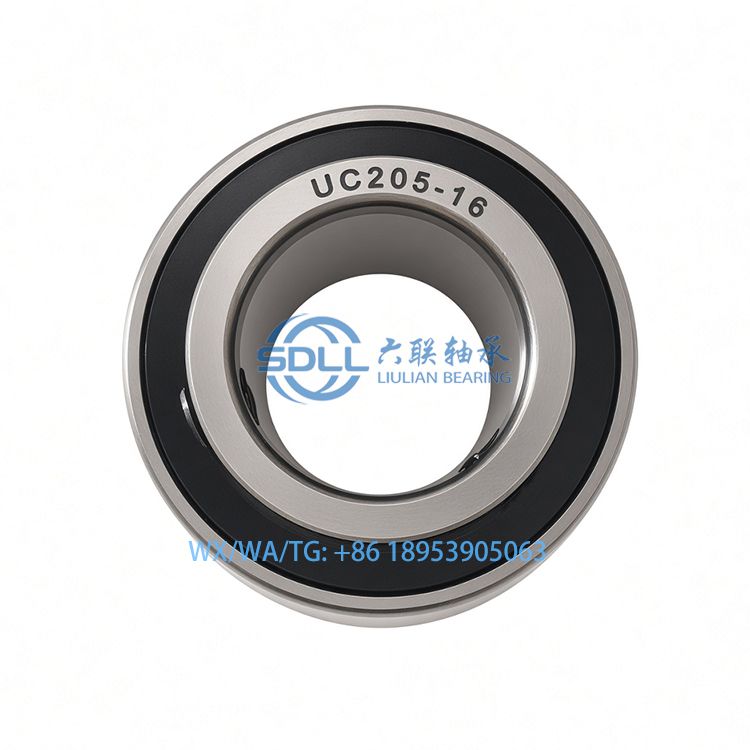

UC = Insert ball bearing with set-screw locking (wide inner ring + spherical outer diameter)
FL = Oval / rhombic flange housing (cast iron housing with an elongated oval flange and two mounting bolt holes)

Typical Applications

UCFL bearings are particularly suitable for vertical or side mounting where space is limited. Common uses include:

Compact conveyor systems and roller supports
Packaging and food processing machinery
Textile machinery
Agricultural equipment with restricted mounting areas
Fans, blowers, and light industrial equipment
Small pumps, mixers, and material handling systems
Any application requiring flange mounting with a smaller footprint than a square UCF unit

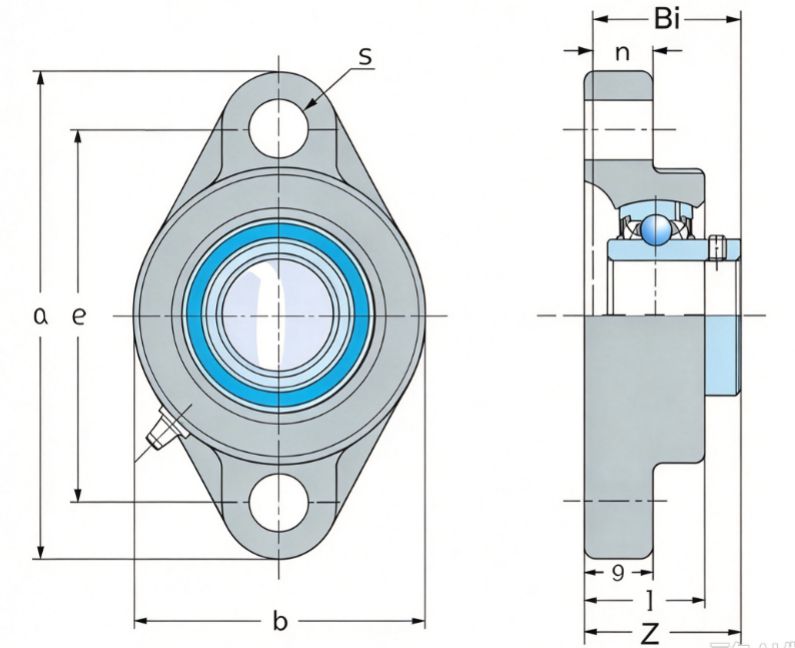

Model	d (mm)	a (mm)	e (mm)	i (mm)	g (mm)	l (mm)	s (mm)	b (mm)	z (mm)	B (mm)	n (mm)	Bolt Size
UCFL201	12	113	90	15	11–12	25.5	12	60	33.3	31	12.7	M10
UCFL202	15	113	90	15	11–12	25.5	12	60	33.3	31	12.7	M10
UCFL203	17	113	90	15	11–12	25.5	12	60	33.3	31	12.7	M10
UCFL204	20	113	90	15	11–12	25.5	12	60	33.3	31	12.7	M10
UCFL205	25	130	99	16	13–14	27	16	68	35.8	34.1	14.3	M14
UCFL206	30	148	117	18	13–14	31	16	80	40.2	38.1	15.9	M14
UCFL207	35	161	130	19	15–16	34	16	90	44.4	42.9	17.5	M14
UCFL208	40	175	144	21	15–16	36	16	100	51.2	49.2	19	M14
UCFL209	45	188	148	22	16–18	38	19	108	52.2	49.2	19	M16
UCFL210	50	197	157	22	16–18	40	19	115	54.6	51.6	19	M16
UCFL211	55	224	184	25	18–20	43	19	130	58.4	55.6	22.2	M16
UCFL212	60	250	202	29	18–20	48	23	140	68.7	65.1	25.4	M20
UCFL213	65	258	210	30	22–24	50	23	155	69.7	65.1	25.4	M20
UCFL214	70	265	216	31	22–24	54	23	160	75.4	74.6	30.2	M20
UCFL215	75	275	225	34	22–24	56	23	165	78.5	77.8	33.3	M20
UCFL216	80	290	233	34	22–24	58	25	180	83.3	82.6	33.3	M22
UCFL217	85	305	248	36	26	63	25	190	87.6	85.7	34.1	M22
UCFL218	90	320	265	40	26	68	25	205	96.3	96	39.7	M22
UCFL305	25	150	113	16	13	29	19	80	39	38	15	M16
UCFL306	30	180	134	18	15	32	23	90	44	43	17	M20
UCFL307	35	185	141	20	16	36	23	100	49	48	19	M20
UCFL308	40	200	158	23	17	40	23	112	56	52	19	M20
UCFL309	45	230	177	25	18	44	25	125	60	57	22	M22
UCFL310	50	240	187	28	19	48	25	140	67	61	22	M22
UCFL311	55	250	198	30	20	52	25	150	71	66	25	M22
UCFL312	60	270	212	33	22	56	31	160	78	71	26	M27
UCFL313	65	295	240	33	25	58	31	175	78	75	30	M27
UCFL314	70	315	250	36	28	61	35	185	81–83	78	33	M30
UCFL315	75	320	260	39	30	66	35	195	89	82	32	M30
UCFL316	80	355	285	38	32	68	38	210	90	86	34	M33
UCFL317	85	370	300	44	32	74	38	220	100	96	40	M33
UCFL318	90	385	315	44	36	76	38	235	100	96	40	M33
UCFL319	95	405	330	59	40	94	41	250	121	103	41	M36
UCFL320	100	440	360	59	40	94	44	270	125	108	42	M39
