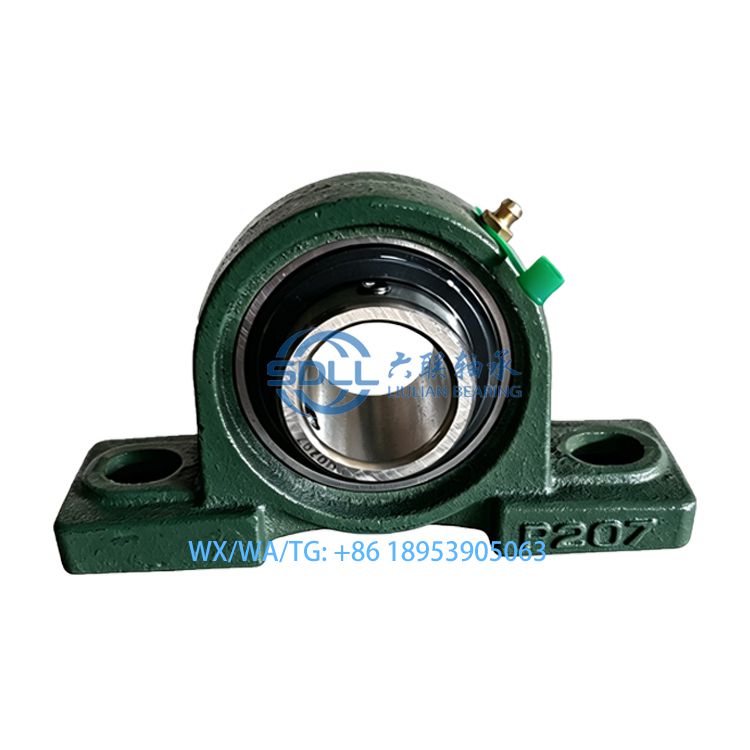

Agricultural Bearings UCP204 205 206 207 208 209 Pillow Bearing Bearings

Agricultural bearings UCP204 205 206 207 208 209 pillow bearing bearings

Quantity:
3112733.3mm:	UCP204 UCP205 UCP206 UCP207 UCP208 UCP209
Availability:





Inquire Add to Basket

Model:
ucp204
Brand:
SDLL
Code:
8483200000

Product Description

Agricultural Bearings UCP204 205 206 207 208 209 Pillow Bearing Bearings

Good quality and Short delivery time,many sizes are available in stock,welcome.

Name:Lynn

Email: liyun@sdllbearing.com

Wechat/WhatsApp: +86 18953905063

Agricultural bearings UCP204 205 206 207 208 209 pillow bearing bearings

SDLLZC Advantage	1.Excellent and high quality control,high speed,low noise,long life
	2.Prompt delivery
	3.Competitive price
	4.Small order accepted
	5.Customers' drawing or samples accepted
	6.OEM service
	7.Professional:many years manufacture bearing

UCP Series Bearings – Features and Applications

The UCP series is one of the most widely used types of mounted ball bearing units (also known as pillow block bearings).

UCP stands for:

UC = Insert ball bearing with set-screw locking (wide inner ring + spherical outer diameter)
P = Pillow block housing (cast iron housing with a flat base and two mounting bolt holes)

Available in Two Main Load Series

UCP200 series: Compact design for light-to-medium loads and higher speeds.
UCP300 series: Larger size for higher radial load capacity.

Typical Applications

UCP pillow block bearings are ideal for supporting horizontal shafts under primarily radial loads. Common equipment and industries include:

Conveyor systems (belt conveyors, roller conveyors, packaging lines)
Agricultural machinery (harvesters, grain augers, feed conveyors, threshers)
Fans and blowers (HVAC systems, industrial ventilation)
Pumps and motors
Textile machinery
Food processing and packaging equipment
Material handling equipment
Light-to-medium duty industrial machinery in general

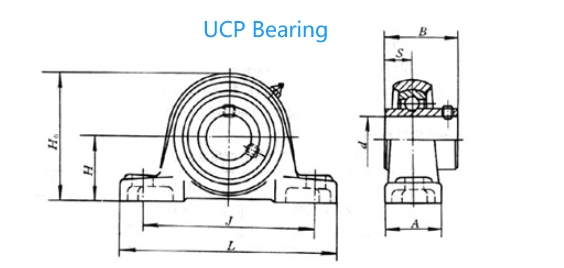

UCP图纸

Inquiry	Type	Dimensions（mm）												Bolt Dimensions	Bearing Type	House Type	With Shield	With Shield	t	Zs	Wc	Zc	Weight (With House)	Weight (With Shield)

Inquiry	Type	d	H	L	J	A	N	N1	H1	W	L1	B	S	Bolt Dimensions	Bearing Type	House Type	With Shield	With Shield	t	Zs	Wc	Zc	(Kg)	(Kg)
	UCP203	17	30.2	127	96	38	12	16	14	62	42	27.4	11.5	M10	UC203	P203							0.6	-
	UCP204	20	33.3	127	96	38	12	16	14	65	42	31	12.7	M10	UC204	P204	S(SM)-UCP204	C(CM)-UCP204	2	44.5	70	62	0.7	0.7
	UCP205	25	36.5	140	105	38	12	19	16	71	42	34.1	14.3	M10	UC205	P205	S(SM)-UCP205	C(CM)-UCP205	2	48	76	70	0.8	0.9
	UCP206	30	42.9	165	121	48	14	21	18	84	54	38.1	15.9	M12	UC206	P206	S(SM)-UCP206	C(CM)-UCP206	2	53	88	75	1.3	1.4
	UCP207	35	47.6	167	126	48	14	21	19	93	54	42.9	1.5	M12	UC207	P207	S(SM)-UCP207	C(CM)-UCP207	3	59.5	99	80	1.6	1.7
	UCP208	40	49.2	184	136	54	14	21	19	98	54	49.2	19	M12	UC208	P208	S(SM)-UCP208	C(CM)-UCP208	3	69	105	90	1.9	2.2
	UCP209	45	54	190	146	54	14	21	20	106	60	49.2	19	M12	UC209	P209	S(SM)-UCP209	C(CM)-UCP209	3	69	113	95	2.2	2.4
	UCP210	50	57.2	206	159	60	18	23	22	114	65	51.6	19	M16	UC210	P210	S(SM)-UCP210	C(CM)-UCP210	3	74.5	119	100	2.6	2.8
	UCP211	55	63.5	219	172	60	18	23	22	125	65	55.6	22.2	M16	UC211	P211	S(SM)-UCP211	C(CM)-UCP211	4	76	130	100	3.3	3.6
	UCP212	60	69.9	241	186	70	18	23	25	138	70	65.1	25.4	M16	UC212	P212	S(SM)-UCP212	C(CM)-UCP212	4	89	143	115	4.6	5
	UCP213	65	76.2	265	203	70	23	28	27	150	77	65.1	25.4	M20	UC213	P213	S(SM)-UCP213	C(CM)-UCP213	4	89	155	120	5.9	6.3
	UCP214	70	79.4	266	210	72	23	28	27	157	77	74.6	30.2	M20	UC214	P214	-	C(CM)-UCP214	4	162	135	6.6	9.3	-
	UCP215	75	82.6	274	217	74	23	28	28	162	80	77.8	33.3	M20	UC215	P215	-	C(CM)-UCP215	4	168	135	7.4	11	-
	UCP216	80	88.9	292	232	78	23	28	30	174	85	82.6	33.3	M20	UC216	P216	-	C(CM)-UCP216	4	181	145	9	13	-
	UCP217	85	95.2	310	247	83	23	28	32	187	85	85.7	34.1	M20	UC217	P217	-	C(CM)-UCP217	5	191	155	11	15	-
	UCP218	90	101.6	327	262	88	27	34	33	200	90	96	39.7	M24	UC218	P218	-	C(CM)-UCP218	5	204	165	13	18	-
	UCP305	25	45	175	132	45	17	20	15	85	54	38	15	M14	UC305	P305	-	C(CM)—UCP305	2	91	80	1.4	2	2
	UCP306	30	50	180	140	50	17	20	18	95	54	43	17	M14	UC306	P306	-	C(CM)—UCP306	2	105	85	1.8	2.7	-
	UCP307	35	55	210	160	56	17	25	20	106	60	48	19	M14	UC307	P307	-	C(CM)—UCP307	3	115	95	2.8	3.5	-
	UCP308	40	60	220	170	60	17	27	22	116	60	52	19	M14	UC308	P308	-	C(CM)—UCP308	3	125	105	3	4.5	-
	UCP309	45	67	245	190	67	20	30	24	129	65	57	22	M16	UC309	P309	-	C(CM)—UCP309	3	140	110	4.1	6.1	-
	UCP310	50	75	275	212	75	20	35	27	143	75	61	22	M16	UC310	P310	-	C(CM)—UCP310	3	156	120	5.8	8.4	-
	UCP311	55	80	310	236	80	20	38	30	154	85	66	25	M16	UC311	P311	-	C(CM)—UCP311	4	166	125	7.4	9.7	-
	UCP312	60	85	330	250	85	25	38	32	165	95	71	26	M20	UC312	P312	-	C(CM)—UCP312	4	179	135	9.4	12	-
	UCP313	65	90	340	260	90	25	38	33	176	105	75	30	M20	UC313	P313	-	C(CM)—UCP313	4	190	140	10	15	-
	UCP314	70	95	360	280	90	27	40	35	187	105	78	33	M22	UC314	P314	-	C(CM)—UCP314	4	200	140	12	16	-
	UCP315	75	100	380	290	100	27	40	35	198	110	82	32	M22	UC315	P315	-	C(CM)—UCP315	4	210	150	14	20	-
	UCP316	80	106	400	300	110	27	40	40	210	110	86	34	M22	UC316	P316	-	C(CM)—UCP316	4	221	155	18	23	-
	UCP317	85	112	420	320	110	33	45	40	220	120	96	40	M27	UC317	P317	-	C(CM)—UCP317	5	235	170	20	27	-
	UCP318	90	118	430	330	110	33	45	45	235	120	96	40	M27	UC318	P318	-	C(CM)—UCP318
	UCP319	95	125	470	360	120	36	50	45	250	125	103	41	M30	UC319	P319		C(CM)—UCP319	5	258	180	29	38
	ucp320	100	140	490	380	120	36	50	50	275	130	108	42	M30	UC320	P320		C(CM)—UCP320	5	283	190	35	46

Shandong liulian bearing factory

marking on bearing

Deep-groove-ball-bearing-GLZB-factory-1

bearing production process

TESTING PACKING He05949d194d5458eb4ed93619fdb41bau

Prodcuts	Agricultural bearings UCP204 205 206 207 208 209 pillow bearing bearings
Brand name	SDLL / OEM Brands
ID size	Standard and non-standard sizes available
Material	Chrome Steel
Delivery date	Small order 2-15days,large order 30days
Payment terms	A: 30% T/T in advance .70% before shipment（first order and small order）
Payment terms	B: 30% T/T in advance .70% against copy of B/L at sight
About us	SDLLZC is the domestic professional bearing production enterprises, and have all sizes of the bearing from 25mm to 750mm.
